Get on and experience freedom on two wheels: the Ghost E-Asx Advanced is a fully e-mountain bike with cleverly selected components and an excellent price-performance ratio.
Get on and experience freedom on two wheels: the Ghost E-Asx Advanced is a fully e-mountain bike with cleverly selected components and an excellent price-performance ratio.
Ghost

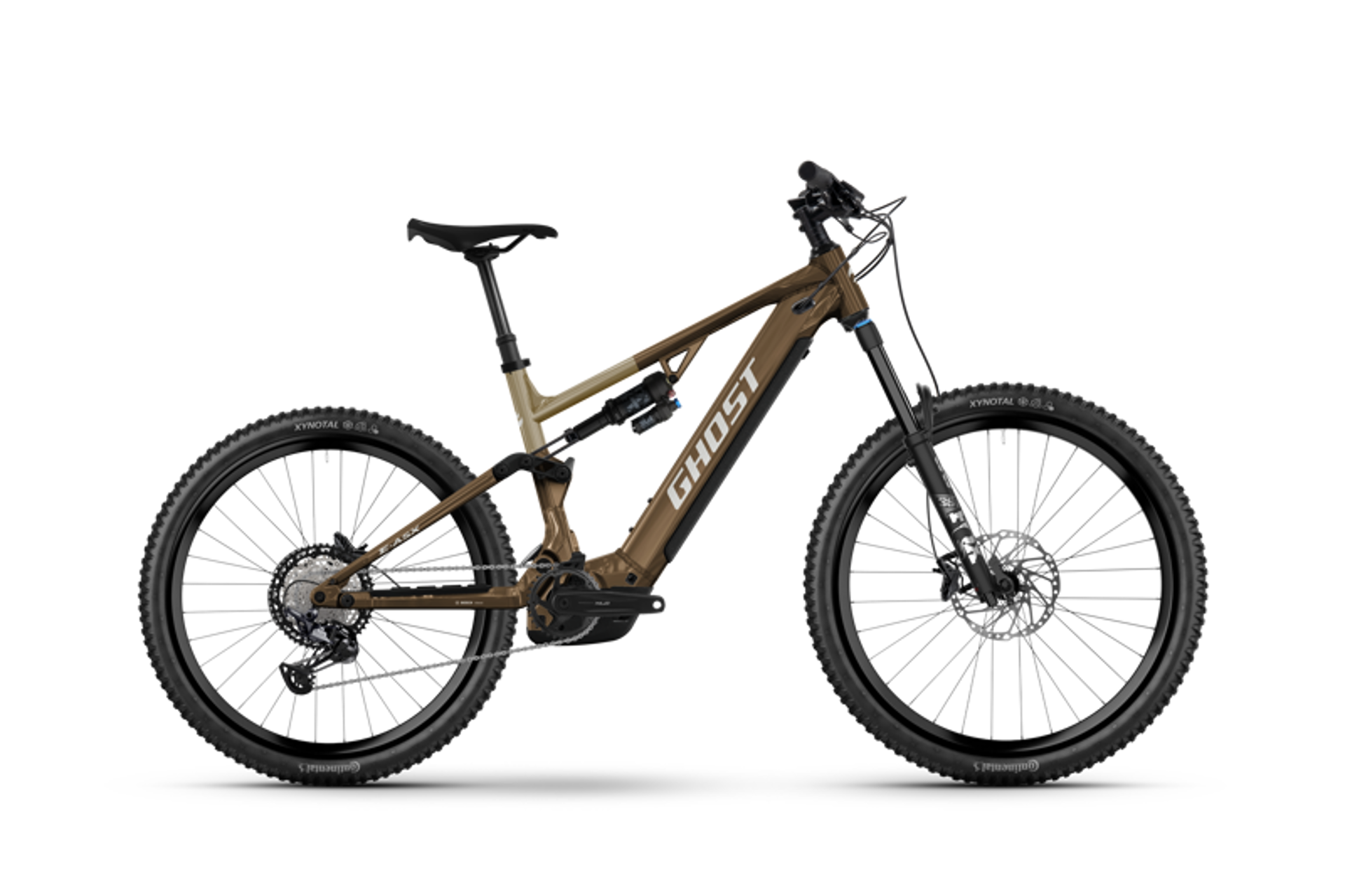

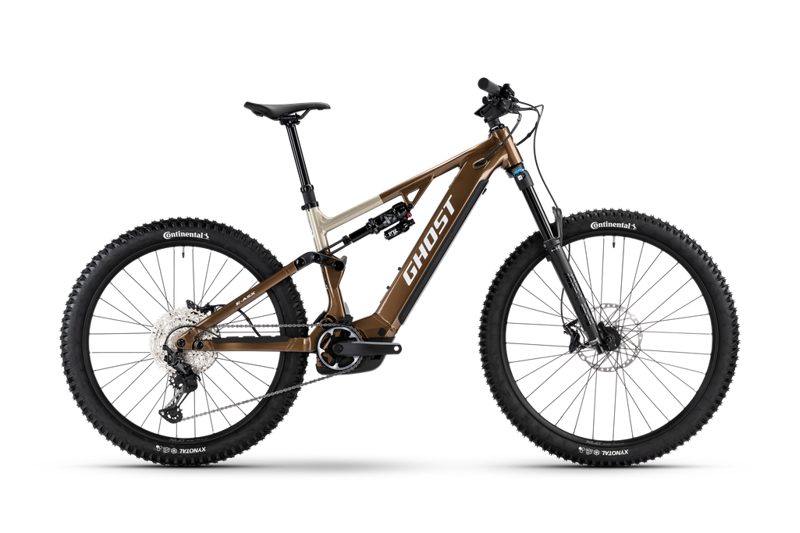

Ghost E-Asx Advanced High E-MTB in Brown Bear/Stone - Glossy

£5,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Ghost E-Asx Advanced High E-MTB in Brown Bear/Stone - Glossy

Season:2026

Brand:Ghost

Code:GBAU1BRN

The Ghost E-Asx Advanced is a fully e-mountain bike with cleverly selected components and impresses with an excellent price-performance ratio.

Thanks to the robust aluminium frame and the generous suspension travel of 160mm at the front and 150mm at the rear, you can master any terrain with ease. The powerful Bosch motor and 800Wh battery power guarantee you impressive power and range, even on demanding tours. Whether on the road, off-road or on adventures in nature, the E-Asx Advanced offers you the performance you need!

Features:

  • Robust aluminium frame
  • Generous suspension travel: 160mm front, 150mm rear
  • Powerful Bosch motor
  • 800Wh battery power
Technical Information
  • Battery
    Bosch InTube 800 Wh
  • Battery brand
    Bosch
  • Battery capacity
    800 Wh
  • Charger
    Bosch Charger 4A 220-240V
  • Display
    Bosch Kiox 300 + LED Remote
  • E-bike system
    Bosch
  • Motor
    Bosch Performance Line CX
  • Motor torque (nm)
    85 Nm
  • Range of use
    4
  • Brake rear
    Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, 203 mm
  • Front brake
    Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, 203 mm
  • Grip kind
    MTB Grip Set VLG-1751D2
  • Handgrip brand
    XLC
  • Handlebar
    XLC Riser Bar HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
  • Pedal
    XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
  • Saddle
    XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
  • Seatpost
    XLC Dropperpost Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm 495 mm
  • Type of kickstand mount
    KSA18
  • Cassette
    Shimano Deore CS-M6100-12, MICRO SPLINE
  • Chain
    Shimano Deore CN-M6100 12s
  • Crankset
    Miranda CR for Bosch BDU38, DM + XLC CR-E18 Crankarms 165
  • Derailleur rear
    Shimano Deore XT RD-M8100-SGS 12s, Shadow+
  • Gear
    Shimano Derailleur
  • Shifter right
    Shimano Triggershift Deore SL-M6100-IR, Rapidfire+
  • Front fork
    FOX Factory 36 Float Rhythm, GRIP, E-Optimized, QR 160 mm
  • Rear travel
    150 mm
  • Shock
    FOX Factory FLOAT X Performance, A, 2pos, Evol LV, 210x55mm
  • Travel
    160 mm
  • Front wheel size
    29
  • Rear wheel size
    27.5
  • Rim
    XLC WR-M39 Disc 30/622 32H 6,5 mm Valve
  • Tyre
    Continental Xynotal Trail Endurance, foldable skin SL 60-622
  • Tyre size ETRTO
    60-622
  • Frame
    HIGH Aluminium Uni
  • Frame material
    Aluminium
  • Frame size
    43 cm
  • Maximum loadable weight
    150 kg
Sizing Information

Geometry

Frame sizeSMLXL
Reach in millimeters430455480510
Seat tube angle77777777
Bottom bracket drop (mm)10101010
Chainstay length in millimeters450450450450
Head tube angle65656565
Top tube length in millimeters570597625658
Stack height (mm)628632646659
Stand over height (mm)793796796796
Seat tube length (mm)405430455495
wheelbase (mm)1208123512661303
Head tube length in millimeters105110125140
