The game has changed—welcome to a new era of true e-Enduro. Introducing the latest evolution of the Crafty Carbon, reimagined to enhance the most successful e-Bike Mondraker has ever created. We've maintained its distinctive identity while boosting performance, agility, and pedaling assistance. Equipped with Bosch’s upgraded CX Performance motor and new, lighter, and more efficient 800Wh and 600Wh removable batteries, it's more CRAFTY than ever before.
The game has changed—welcome to a new era of true e-Enduro. Introducing the latest evolution of the Crafty Carbon, reimagined to enhance the most successful e-Bike Mondraker has ever created. We've maintained its distinctive identity while boosting performance, agility, and pedaling assistance. Equipped with Bosch’s upgraded CX Performance motor and new, lighter, and more efficient 800Wh and 600Wh removable batteries, it's more CRAFTY than ever before.
Mondraker

Mondraker Crafty Carbon RR Earth Red 2025

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

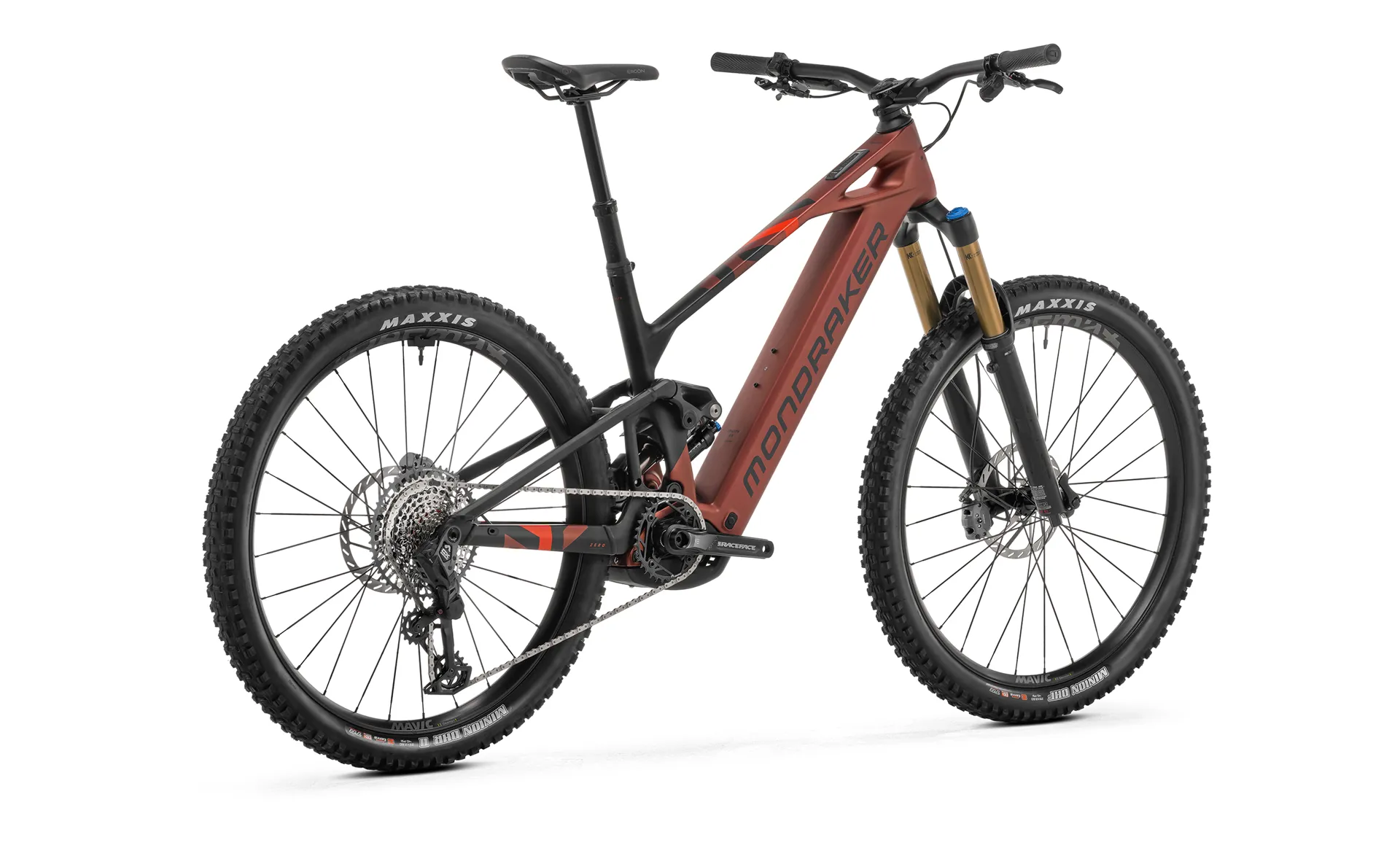

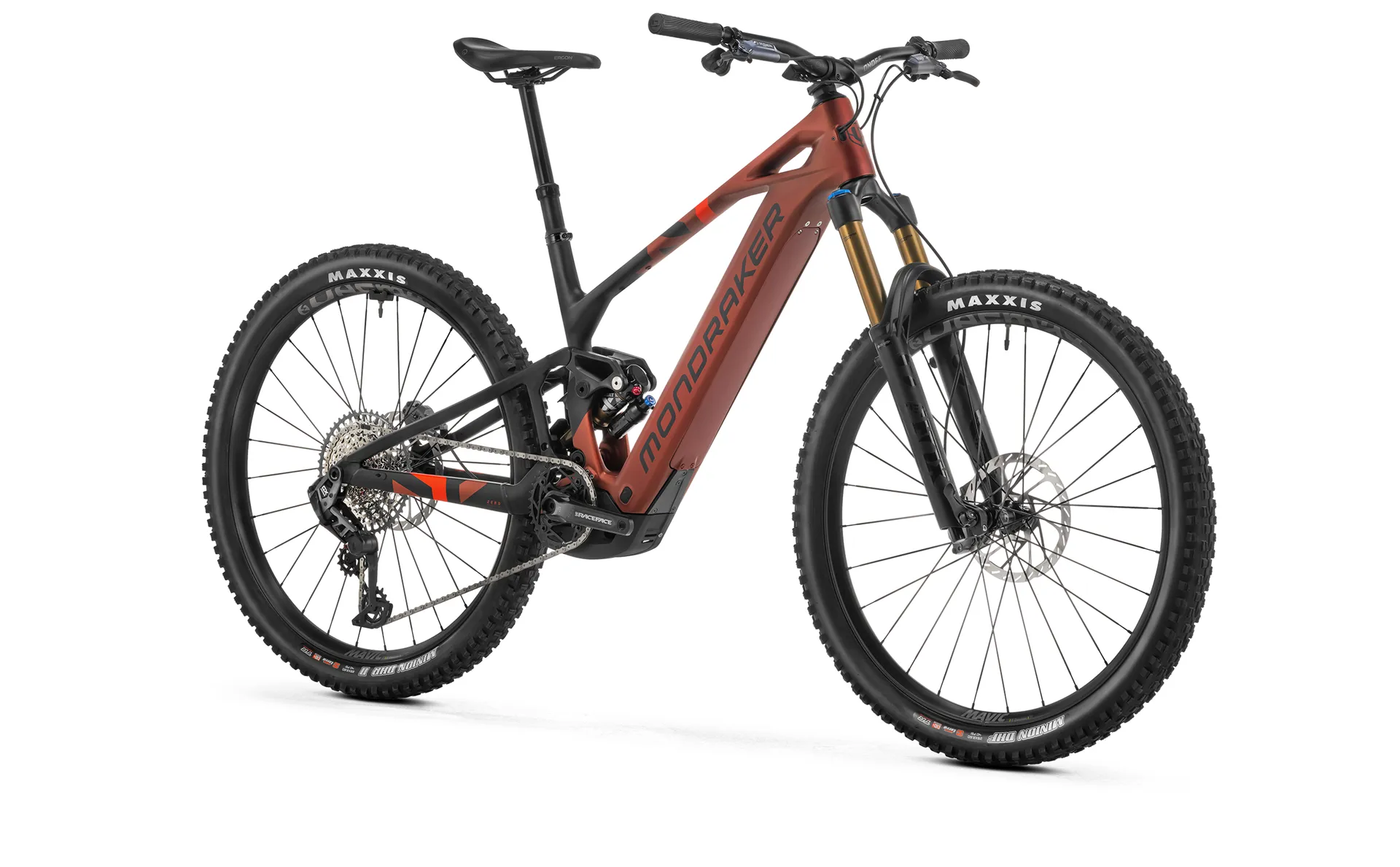

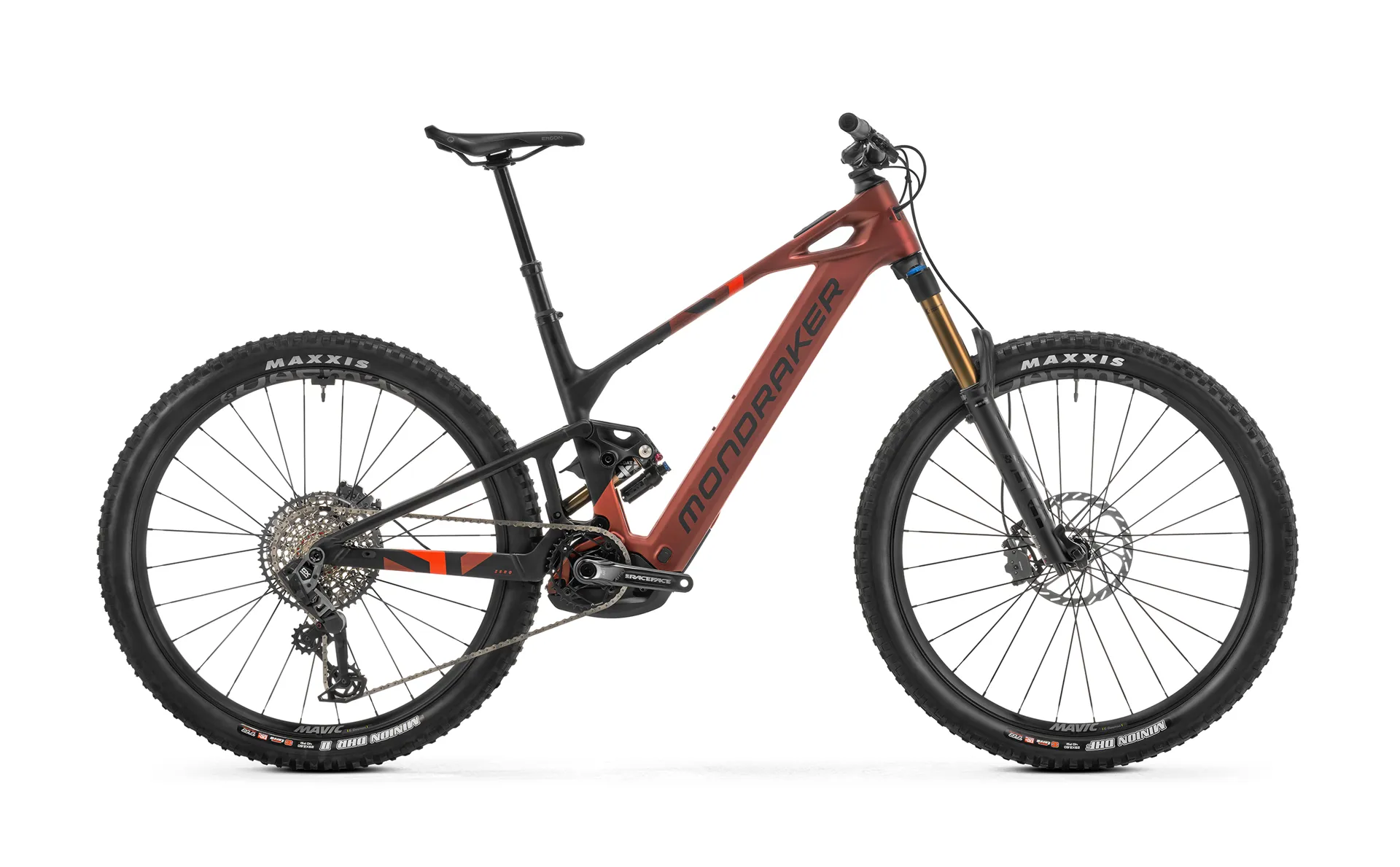

Mondraker Crafty Carbon RR Earth Red 2025

Season:2025

Brand:Mondraker

Code:010.25ER

At Mondraker, we take great pride in our craftsmanship, and the new Crafty Carbon is no exception. It features five builds with carbon fiber frames, while the R and RR models utilize a rear triangle crafted from Stealth Alloy aluminum. Designed for pushing limits, all builds are equipped with robust 38mm stanchion forks and 2.6” tires, except for the RR SL, which features a 36mm fork and 2.5” tires for enhanced performance. Every model comes with 4-piston brakes and 200/203mm discs, as well as dropper posts ranging from 140mm to 210mm, depending on the frame size.

We also introduced a new intermediate ML frame size, fine-tuning our Forward Geometry to provide even more options for customizing your ride to suit your height perfectly.
Technical Information

Frame

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle

Ergon SM-10

Front brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s

Weight

24,4 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
