Season:2024
Brand:Mondraker
Code:010.24240

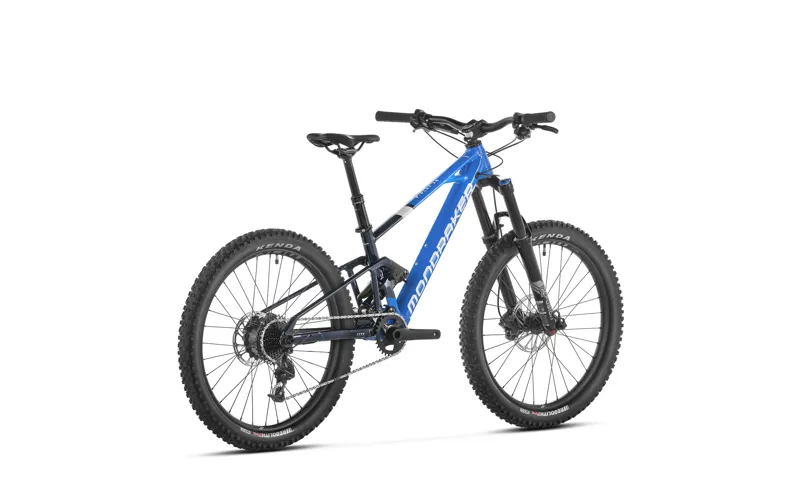

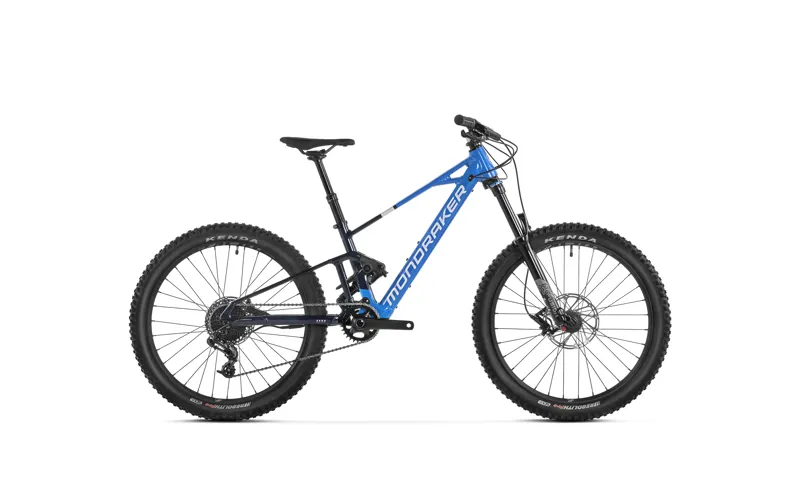

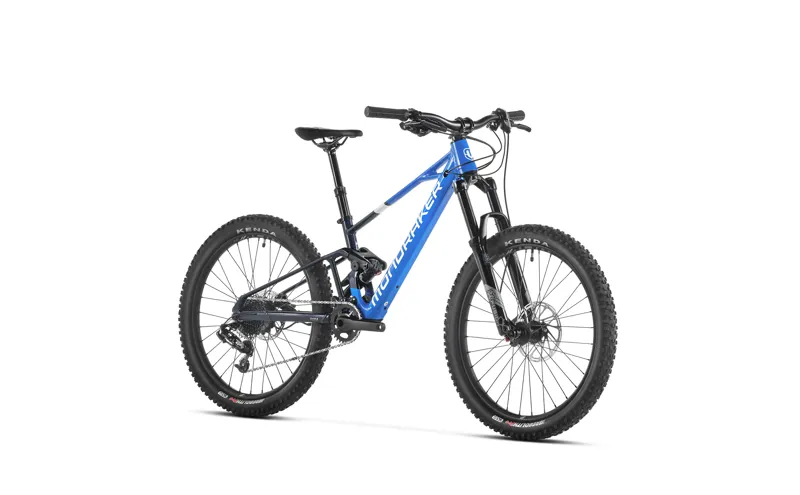

Mondraker F-Play 24 Carrera Blue, kids full suspension electric mountain bike.Happiness, fun and getting started in a sport like mountain biking is what Mondraker eMTB KIDS bikes are all about. eMTBs open doors to enjoying mountain biking like never before. The PLAY range is designed so that girls and boys learn to gain confidence on two wheels with the help of pedal assist, letting them share our rides with them regardless of their fitness level and without them getting left behind.Bike specificationFrame
F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes
One size: 300mm
Rear shock
X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Shock settings
A-Tune light compression
Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset
AcrosAZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 100mm
Saddle
SDG Fly JR
Front brake
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level, tooled reach adjust, lever pivot bushings
Rims
MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Front hub
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub
Mahle-Ebikemotion X-35, HG freehub
Front tire
Kenda Regolith 24x2.4 120TPI, Folding TLR
Rear tire
Crankset
Samox DM 30T steel, 152mm
Rings
30T, steel
Bottom bracket
BSA, 73mm
Pedals
SDG Slater JR
Chain
Sram PC1031 10s, Powerlock
Rear derrailleur
Sram GX, 10s, short cage, X-actuation 1:1
Shift levers
Sram trigger GX 10s, X-actuation 1:1
Cassette
Sram PG 1020 11-36T, 10s
Derailleur hanger
Mondraker M077
Weight
16,2 kg
Display
Mahle-Ebikemotion
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
