Thissuperlight full-power electric mountain bikeAmflow PL is equipped with the Avinox Drive System, delivering 105 N·m of torque, versatile geometry,...
Thissuperlight full-power electric mountain bikeAmflow PL is equipped with the Avinox Drive System, delivering 105 N·m of torque, versatile geometry,...
Amflow

Amflow PL Carbon 2025

£5,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Amflow PL Carbon 2025

Season:2025

Brand:Amflow

Code:AMflowPLCarb

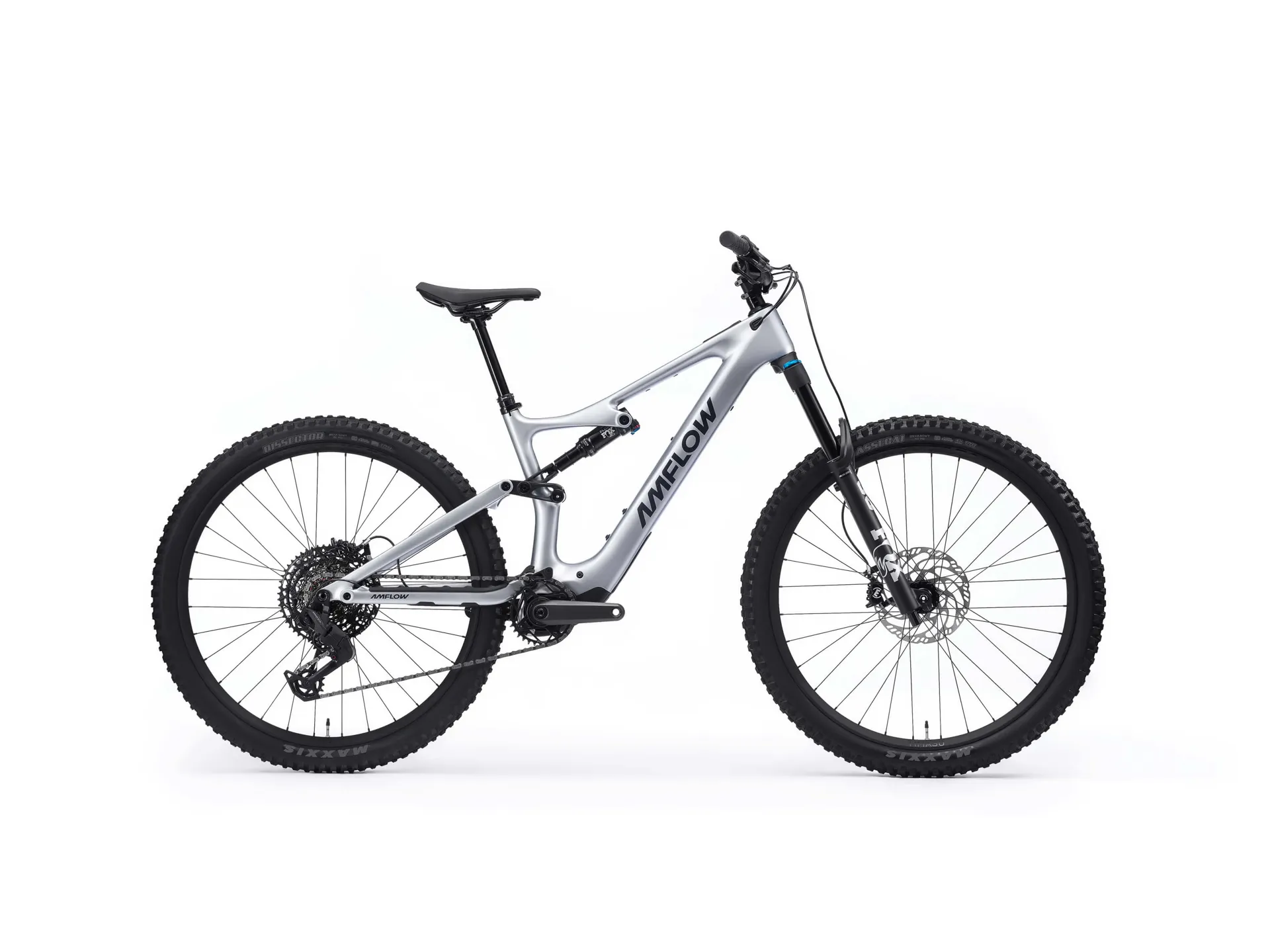

Amflow PL Carbon – Lightweight Power. Intelligent Design. Ultimate Trail Performance.

Overview


The Amflow PL Carbon is a high-performance, full-suspension electric mountain bike that blends featherweight carbon engineering with cutting-edge DJI motor technology. Designed for riders who demand both agility and power on demanding trails, it offers the perfect balance between climbing efficiency and downhill control — all in a sleek, minimalist package.

The Amflow PL Carbon is ideal for:

  • Riders who want maximum trail power with minimum weight

  • Climbers who appreciate a natural pedal feel with electric support

  • Explorers who value long-range riding and smart tech features

  • Enduro and all-mountain riders who demand premium quality without going full “Pro”

Technical Information
Amflow PL Carbon – Full Specifications

Frame

Amflow PL Carbon Frame

Satin Silver

150mm rear travel

Compatible with 27.5"and 29"rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

Rear shock

FOX Float Performance

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Fork

FOX 36 Performance

160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM GX Eagle 12-speed

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click

Cassette: SRAM PG-1230, 11-50T

Chain: SRAM NX Eagle

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

Amflow HMA-30

Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Spokes: SAPIM E-Light J-bend

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tyres

Front: Maxxis Assegai MaxxTerra 29×2.5"WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4"WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Alloy Handlebar

35mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm

Saddle

Selle Royal SRX Plus

Seatpost

KS Rage-i

M: 150mm

L: 170mm

XL/XXL: 190mm

Accessories

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Front and Rear Lights


Sizing Information

Size Guide

  • Medium (M): 162–178 cm (5’4”–5’10”)

  • Large (L): 170–185 cm (5’7”–6’1”)

  • Extra Large (XL): 175–190 cm (5’9”–6’3”)
