Ultra lightweight full carbon frame, 800wh battery this stand out electric mountain bike is high spec, fast and agile ready to attack the trails.
Ultra lightweight full carbon frame, 800wh battery this stand out electric mountain bike is high spec, fast and agile ready to attack the trails.
Amflow

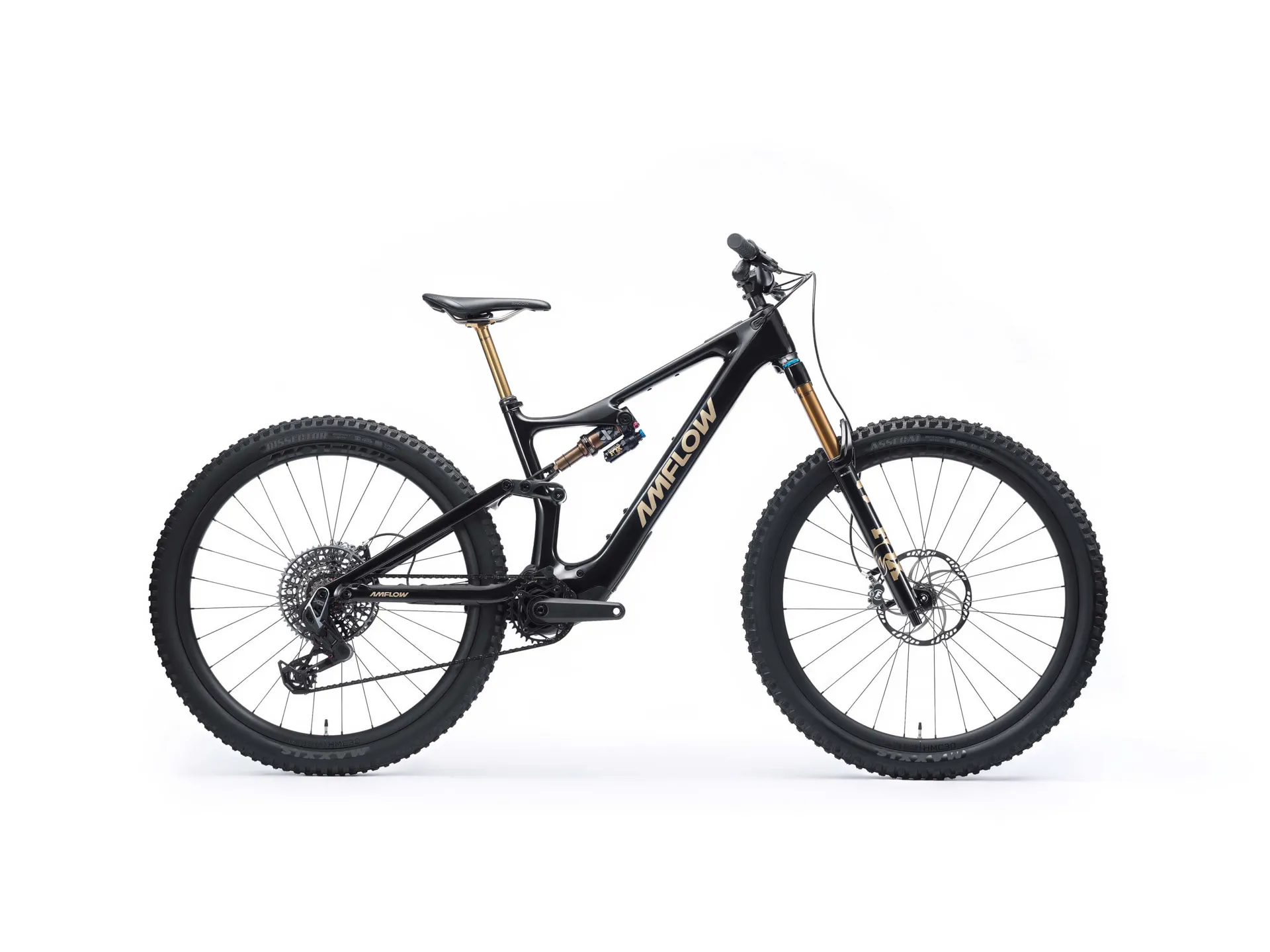

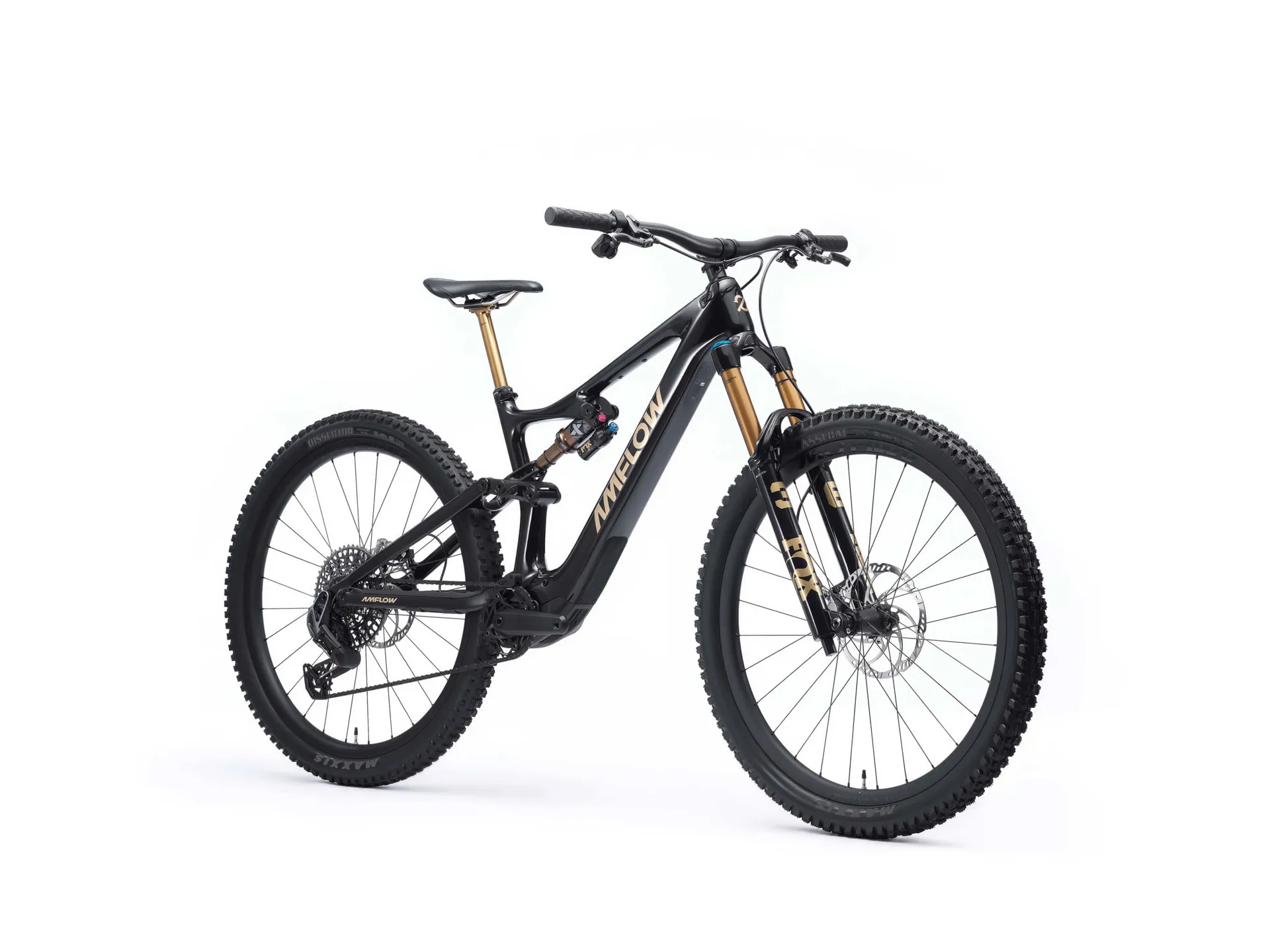

Amflow PL Carbon Pro 2025

£8,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Amflow PL Carbon Pro 2025

Season:2025

Brand:Amflow

Code:AMflowPLCarbpro

Amflow PL Carbon Pro – Premium Lightweight Electric Mountain Bike

Overview

The Amflow PL Carbon Pro is a revolutionary full-suspension electric mountain bike engineered for riders who demand top-tier performance, intelligent features, and ultra-lightweight design. Powered by DJI's cutting-edge Avinox drive system, this eMTB delivers unmatched torque, battery efficiency, and seamless connectivity — all wrapped in a meticulously crafted full carbon frame.

Technical Information


Frame

Amflow PL Carbon Frame

Cosmic Black

150mm rear travel

Compatible with 27.5"and 29"rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

Rear Shock

FOX FLOAT X Factory

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

FOX 36 Factory

160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1295 Eagle Transmission 10-52T

Chain: SRAM X0 Eagle Transmission Flattop Chain

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm

Brakes

Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

Amflow HMC-30

Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready

Spokes: SAPIM E-Light Straightpull

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tyres

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4"WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Carbon Handlebar

25mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep

Stem

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm



Grips

Amflow Enduro Grips

Saddle

Ergon SM Pro M/L

Seapost

Fox Transfer Factory, Travel adjustable in 5mm

M: 125-150mm

L/XL: 155-180mm

XXL: 185-210mm

Accessories

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Front and Rear Lights



Sizing Information
Geometry
MLXLXXL
AReach452mm475mm500mm525mm
BStack Height618mm628mm641mm655mm
CStandover Height780mm785mm790mm795mm
DFront Center782mm810mm844mm873mm
EFork Length570mm570mm570mm570mm
FWheelbase1227mm1255mm1289mm1318mm
GChainstay Length445mm445mm445mm445mm
HBottom Bracket Drop29mm29mm29mm29mm
IBottom Bracket Height345.5mm345.5mm345.5mm345.5mm
JEffective Top Tube Length595mm620mm648mm676mm
KHead Tube Angle64.5°64.5°64.5°64.5°
LHead Tube Length105mm115mm130mm145mm
MActual Seat Tube Angle70°70°70°70°
NEffective Seat Tube Angle77°77°77°77°
OSeat Tube Height430mm450mm470mm500mm
