Reach New Heights. Ride Beyond Limits.The new HAIBIKE ALLMTN CF 11 TRN/IQ is built for those who crave peak performance and pure riding fun. With cutting-edge technology, a lightweight carbon frame, and trail-ready components, this eMTB is your ticket to conquering the toughest climbs and enjoying every descent. It’s more than just a ride – it’s an adventure waiting to happen.
Reach New Heights. Ride Beyond Limits.The new HAIBIKE ALLMTN CF 11 TRN/IQ is built for those who crave peak performance and pure riding fun. With cutting-edge technology, a lightweight carbon frame, and trail-ready components, this eMTB is your ticket to conquering the toughest climbs and enjoying every descent. It’s more than just a ride – it’s an adventure waiting to happen.
Haibike

Haibike Allmtn CF 11 TRN/IQ 2025 Gloss Rock Carbon Grey

£8,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Haibike Allmtn CF 11 TRN/IQ 2025 Gloss Rock Carbon Grey

Season:2025

Brand:Haibike

Code:HMFT2Multicolor

Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more.

This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!


LOADING ADDITONAL SET UP.....



SMART.SHIFT TECHNOLOGY

Precise and seamless shifting without cracking - even under load. Performs quickly and intelligently, even on the steepest uphills.

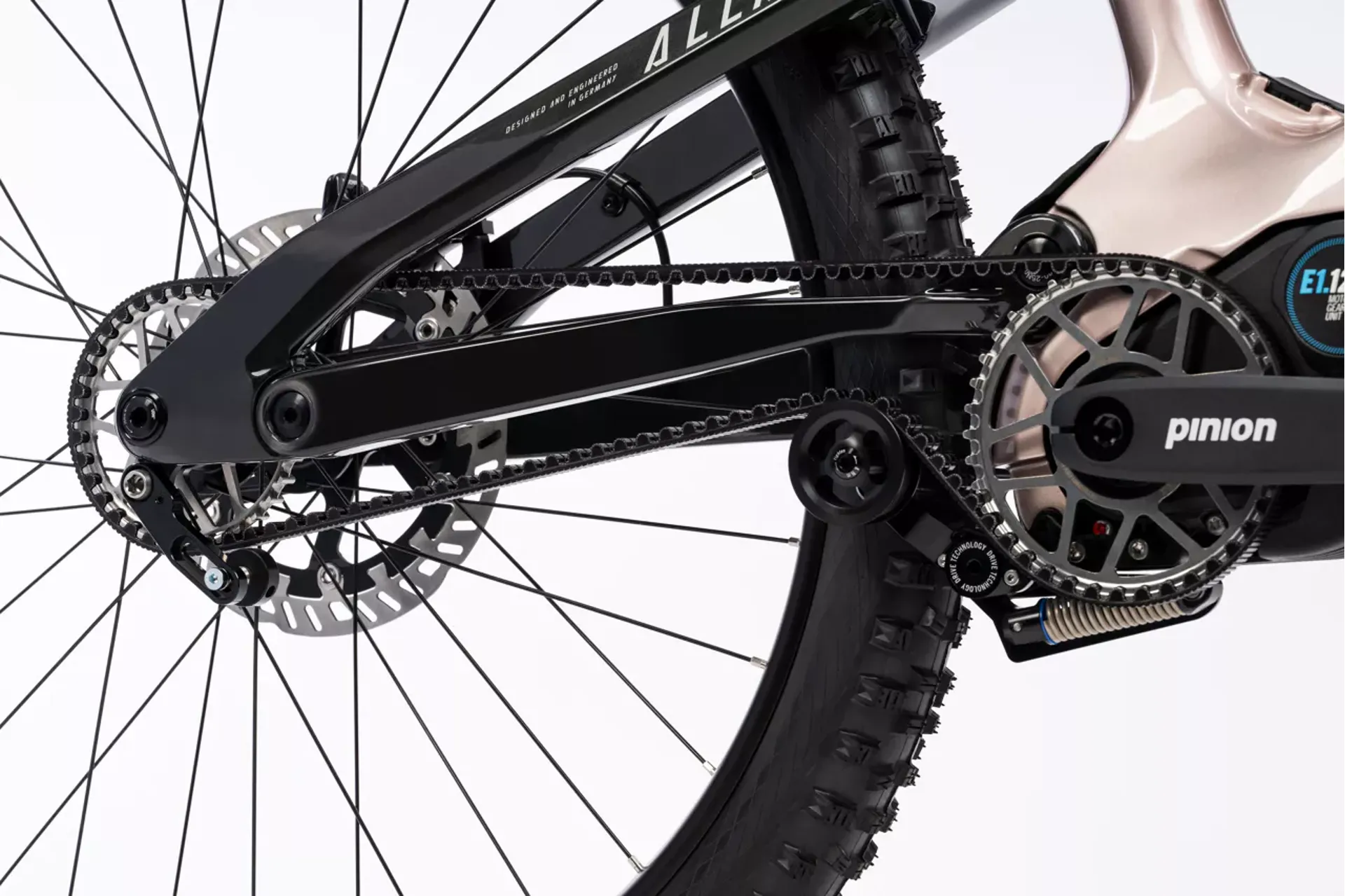

LOW WEAR & MINIMAL MAINTENANCE

Thanks to the belt drive and a transmission sealed against wind and water, the bike is extremely low-maintenance and highly durable. (Oil change only every 10,000 km / 6213.7 miles.)

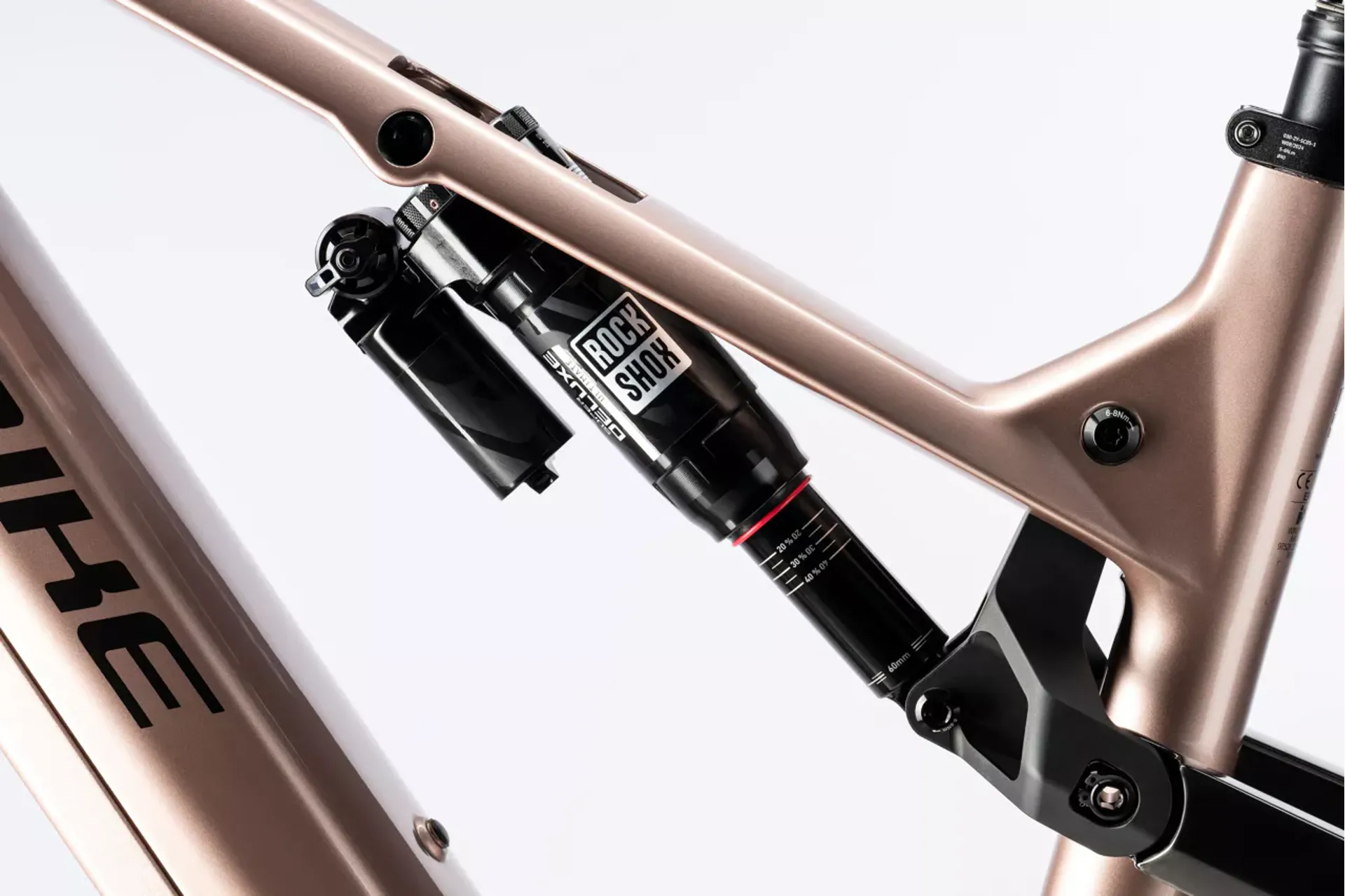

NEW KINEMATICS WITH OPTIMIZED SHOCK POSITION

Crafted in Europe from ultra-light carbon, the AllMtn features a new kinematic setup and an innovative shock position. The result: a clean, radical design & pure freedom.

UPHILL EFFICIENCY LIKE NEVER BEFORE. DOWNHILL FUN LIKE NEVER BEFORE.
Technical Information

E System

Battery: Pinion InTube 800Wh

Battery capacity:800 Wh

Charger:Pinion FIT Standard Charger 48V

Display:Pinion FIT Master Node Display + Remote Pure

E-bike system:Pinion

Maximum support speed: 25 km/h

Motor: Pinion E1.12 Motor Gearbox Unit

Motor torque (nm):85 Nm

Drive

Cassette:Gates Carbon Drive CDX Sprocket, 9 Spline

Chain:Gates Belt Carbon Drive Belt CDX, 120T

Crankset:Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165

Frame:High Carbon Uni

Frame material:Carbon

Frame shape:High

Frame size:42 cm

Gear:Pinion Gearbox

Max permissible weight (Rider, Cargo and Bike):135 kg

Number of gears:12

Shifter Right:Pinion Triggershift Smart Shift TE1 E-Trigger

Suspension

Front Fork:Rockshox ZEB Ultimate Charger 3.1 RC2, DebonAir 160 mm

Rear travel:160 mm

Shock:Rockshox Super Deluxe Ultimate RC2T 230x60mm, DebonAir

Travel:160 mm

Components

Brake light

No

Brake Rear

Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm

Front brake

Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm

Grip kind

MTB Grip Set VLG-1751D2

Handgrip brand

XLC

Handlebar

Haibike Flat bar TheBar++ Dia. 31.8 mm

Pedal

VP VPE-527 Alloy w/ Reflector

Saddle

Selle Royal Vivo 1216HRN

Seatpost

Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 150 mm

Wheelset

Front wheel size: 29

Rear wheel size:27.5

Tyre:Continental Kryptotal-Fr, Enduro Soft, foldable skin SL 60-622

Tyre size ETRTO:60-622

Sizing Information
