A sporty eMTB that delivers maximum power and peak all-mountain performance, featuring a rotated Bosch Performance CX motor and 800Wh battery.
A sporty eMTB that delivers maximum power and peak all-mountain performance, featuring a rotated Bosch Performance CX motor and 800Wh battery.
Haibike

Haibike Allmtn CF 9 eMountain Bike in Red/Black/Platinum 2026

£6,249.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

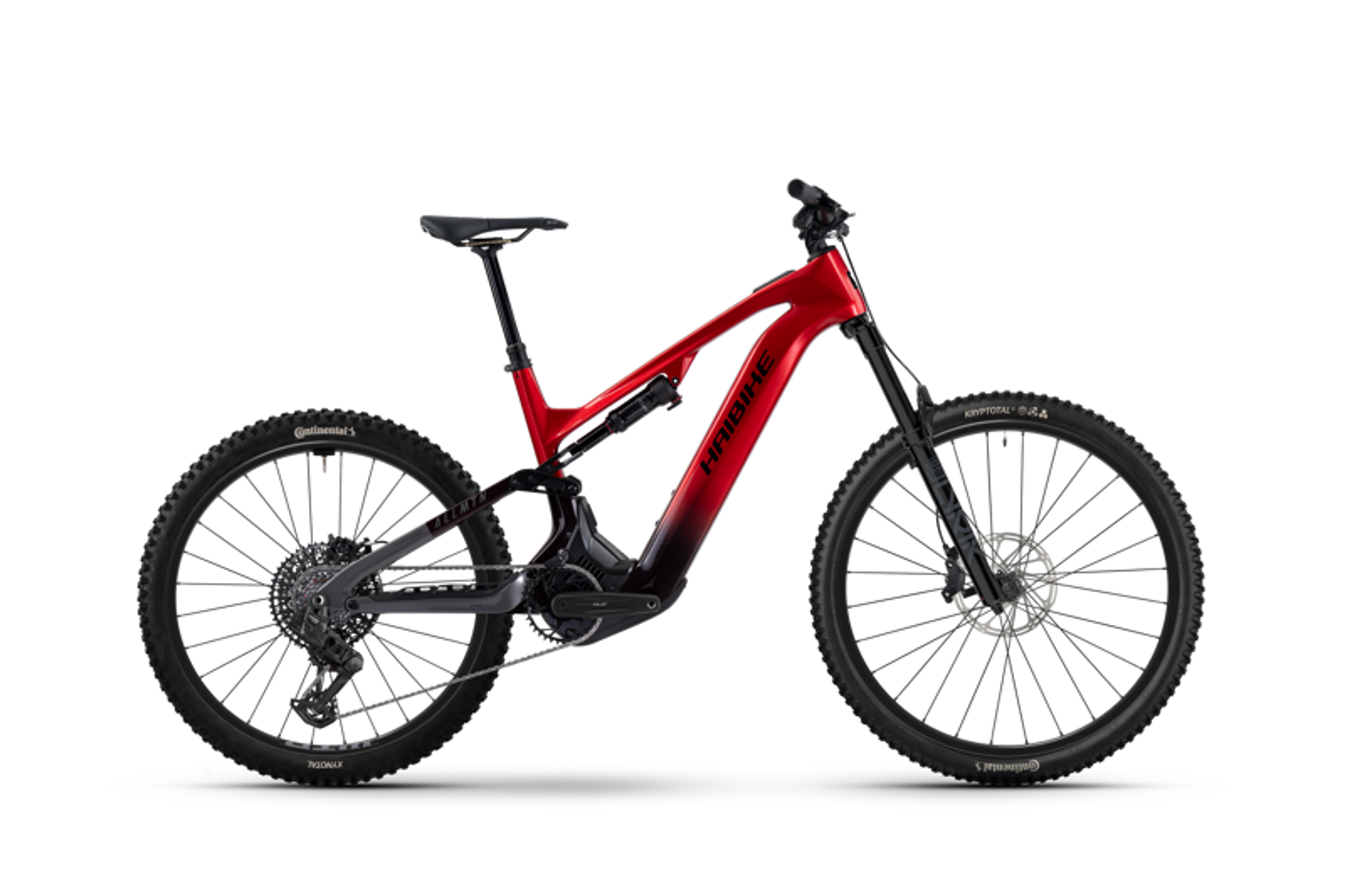

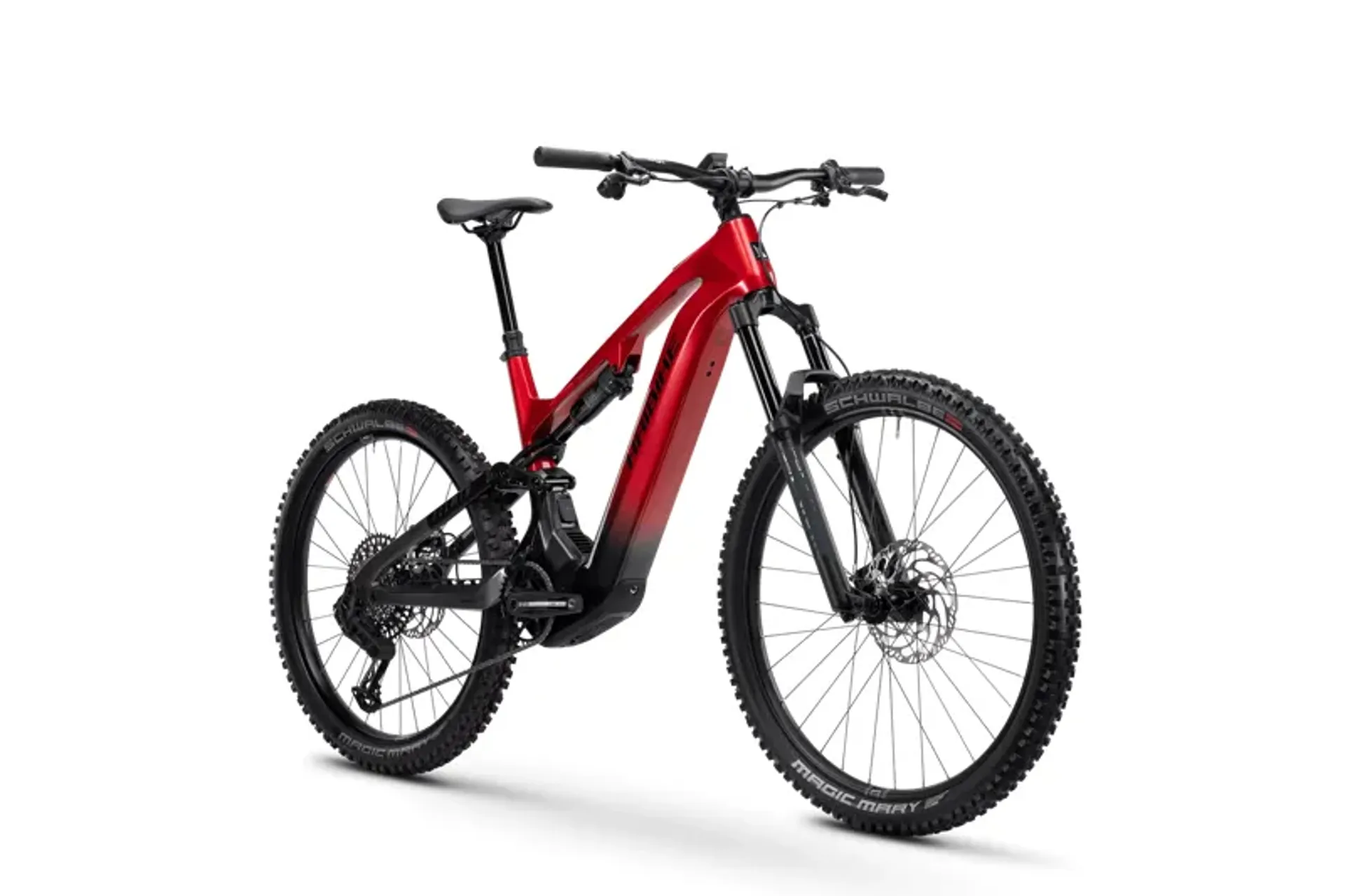

Haibike Allmtn CF 9 eMountain Bike in Red/Black/Platinum 2026

Season:2026

Brand:Haibike

Code:HMLU1RED

Maximum power through the mountains. The Haibike Allmtn CF 9 delivers peak all-mountain performance backed by clever engineering.

This sporty eMTB is designed to deliver outstanding all-mountain performance. To maximise the potential of the powerful Bosch Performance CX motor, the motor has been rotated inside the carbon frame. This provides better heat management and improved efficiency when your rides get tough.

A purpose-built kinematic system with a horizontal shock, combined with the mullet wheel setup and the 160mm RockShox fork, transforms even rough downhill runs into smooth forest trails. Grippy SRAM DB8 disc brakes round off this strong all-mountain setup.

The 800Wh battery offers lasting power and can be extended by 250Wh with an optional Range Extender for even longer rides. This provides the ideal setup for long alpine adventures with maximum power.

Technical Information
Specification

Brake system

  • Brake Front Brand:Sram
  • Brake Front Kind:DB8 Stealth, 4 pistons, 220 mm
  • Brake Front Mount:Post Mount
  • Brake Front Type:Hydraulic Disc brake
  • Brake Rear Brand:Sram
  • Brake Rear Kind:DB8 Stealth, 4 pistons, 200 mm
  • Brake Rear Mount:Post Mount
  • Brake Rear Type:Hydraulic Disc brake
  • Brake Lever Brand:Sram
  • Brake Lever Kind:DB8 Stealth-BL
  • Brake Rotor Brand:Sram
  • Brake Rotor Kind:DB Rotor Centerline 220 / 200 mm, 6 bolt Disc

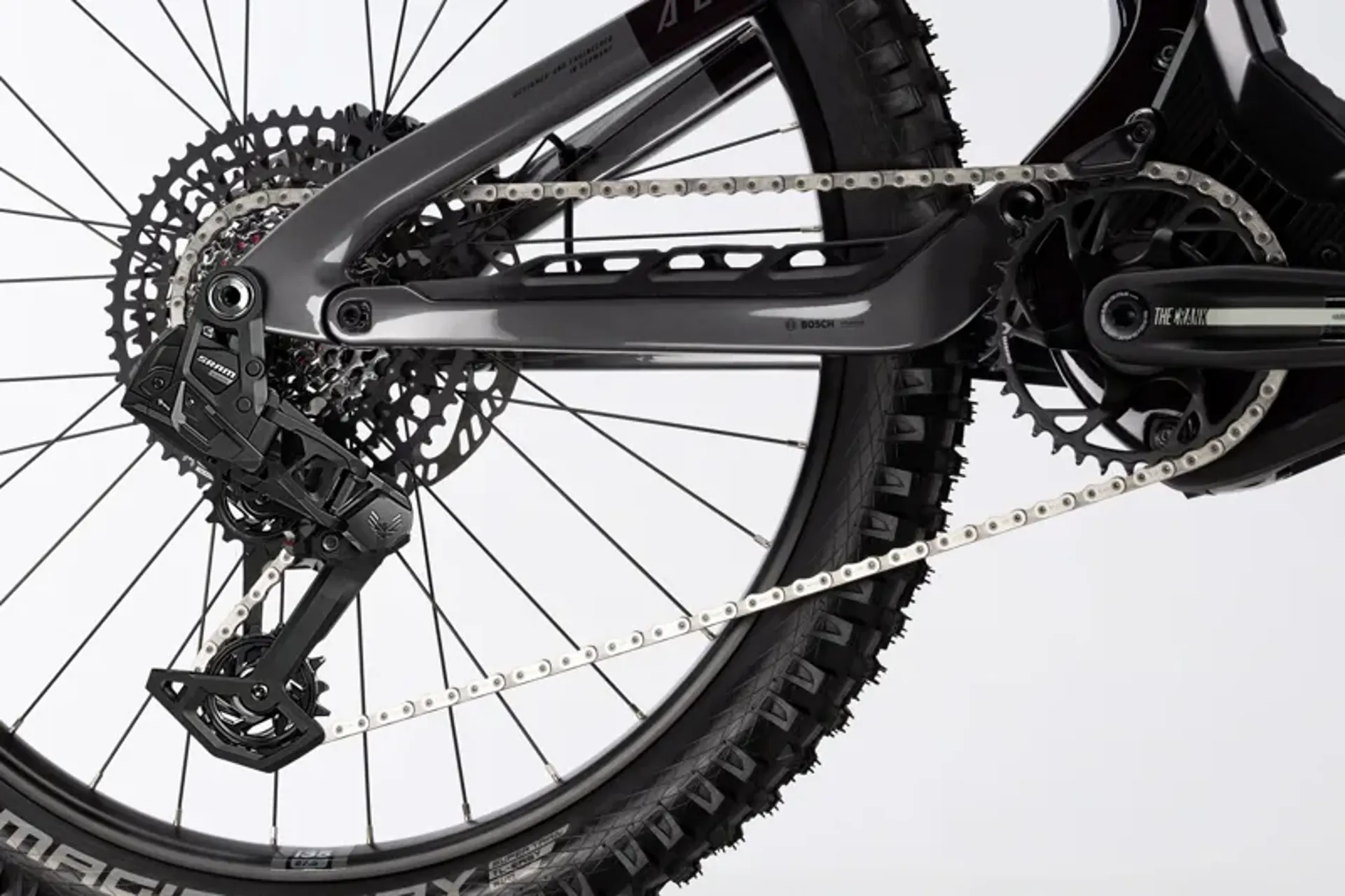

Drivetrain

  • Cassette Brand:Sram
  • Cassette Kind:XS-1275 Eagle T-Type, XD
  • Cassette Teeth:10-52T
  • Chain Brand:Sram
  • Chain Guide Brand:Winning
  • Chain Guide Kind:WI-38L-95 Chainguide
  • Chain Kind:GX Eagle T-Type 12s
  • Chain Type:Chain
  • Crank Arm length:160
  • Crankset Brand:XLC
  • Crankset Kind:CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
  • Crankset Teeth:36T
  • Crankset Type:single
  • Derailleur Rear Brand:Sram
  • Derailleur Rear Kind:S1000 Eagle AXS T-Type 12s, wireless
  • Gear Brand:Sram
  • Gear Type:Derailleur
  • Pedal Brand:XLC
  • Pedal Inclusive:Yes
  • Pedal Kind:Flat Pedal PD-M29 w/ Reflector + integrated Pins
  • Shifter Right Brand:Sram
  • Shifter Right Kind:AXS Pod Controller
  • Shifter Right Type:Triggershift

E-bike components

  • Battery Brand:Bosch
  • Battery Capacity:800 Wh
  • Battery Kind:InTube 800Wh
  • Battery Location:Powertube
  • Charger Brand:Bosch
  • Charger Kind:Charger 4A 220-240V

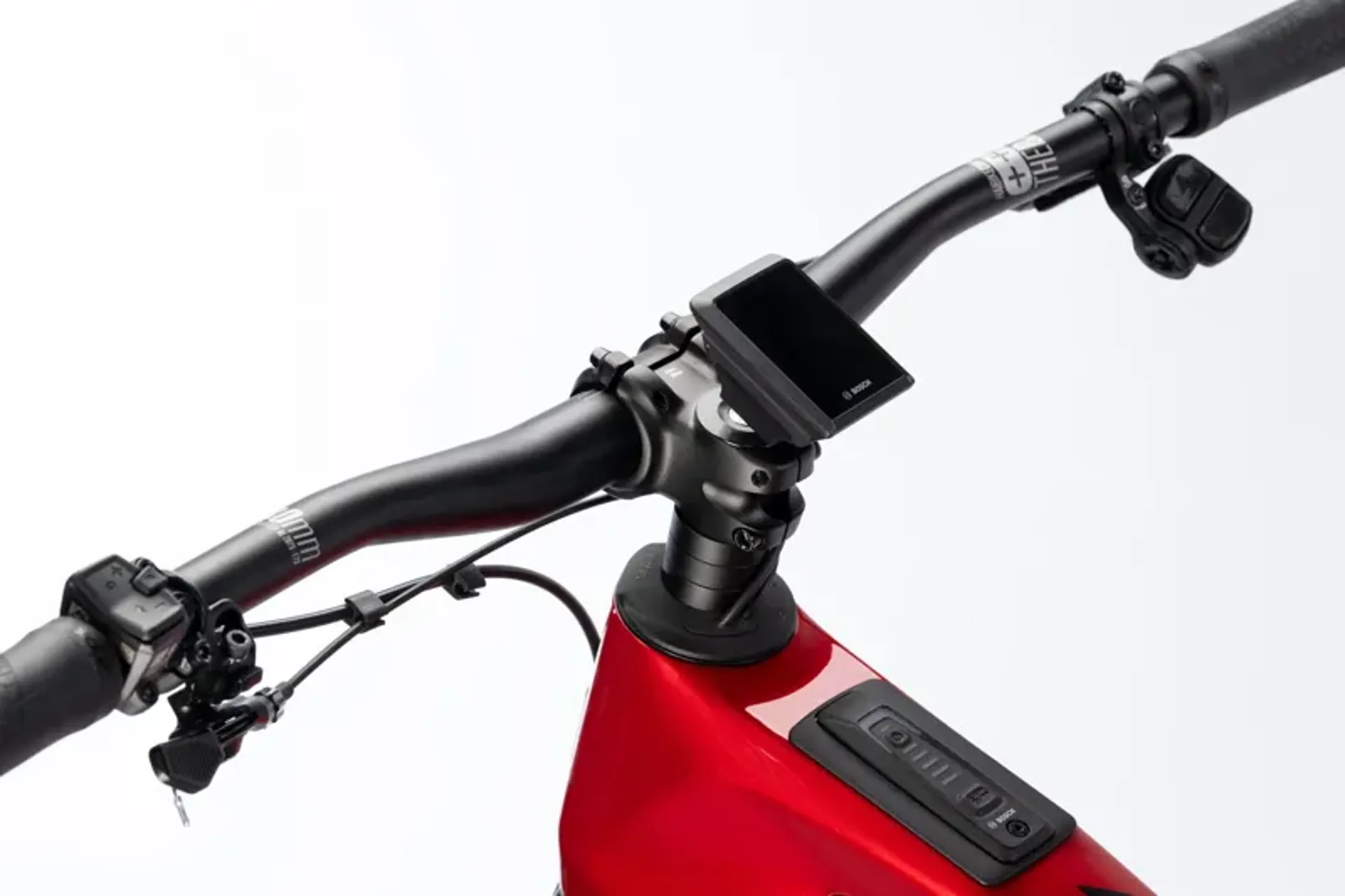

  • Display Brand:Bosch
  • Display Kind:Kiox 400C + Mini Remote
  • Display Type:Kiox 400C
  • Motor Brand:Bosch
  • Motor Torque [nm]:85 Nm
  • Motor Kind:Performance Line CX
  • Motor Location:Center
  • Motor Type:Performance Line CX

Frame and more

  • Framesize:
    • · 40 cm
    • · 43 cm
    • · 46 cm
    • · 49 cm
  • Framesize Convection:
    • · S
    • · M
    • · L
    • · XL
  • Max loadable weight (KG):135 kg

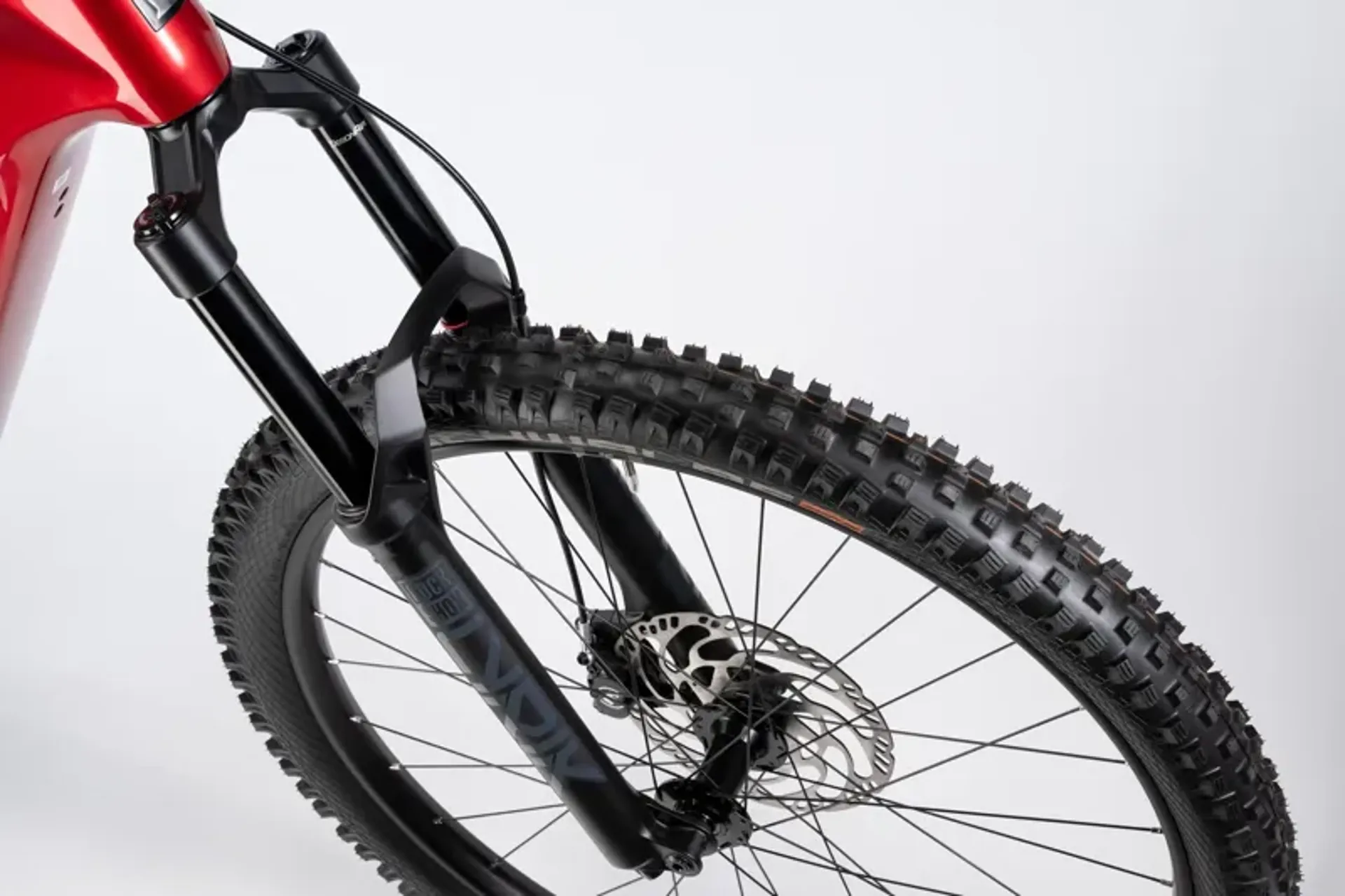

  • Front Fork Brand:Rockshox
  • Front Fork Kind:Lyrik Base Rush RC, DebonAir+ 160 mm
  • Front Fork Type:Suspension
  • Frame Kind:High

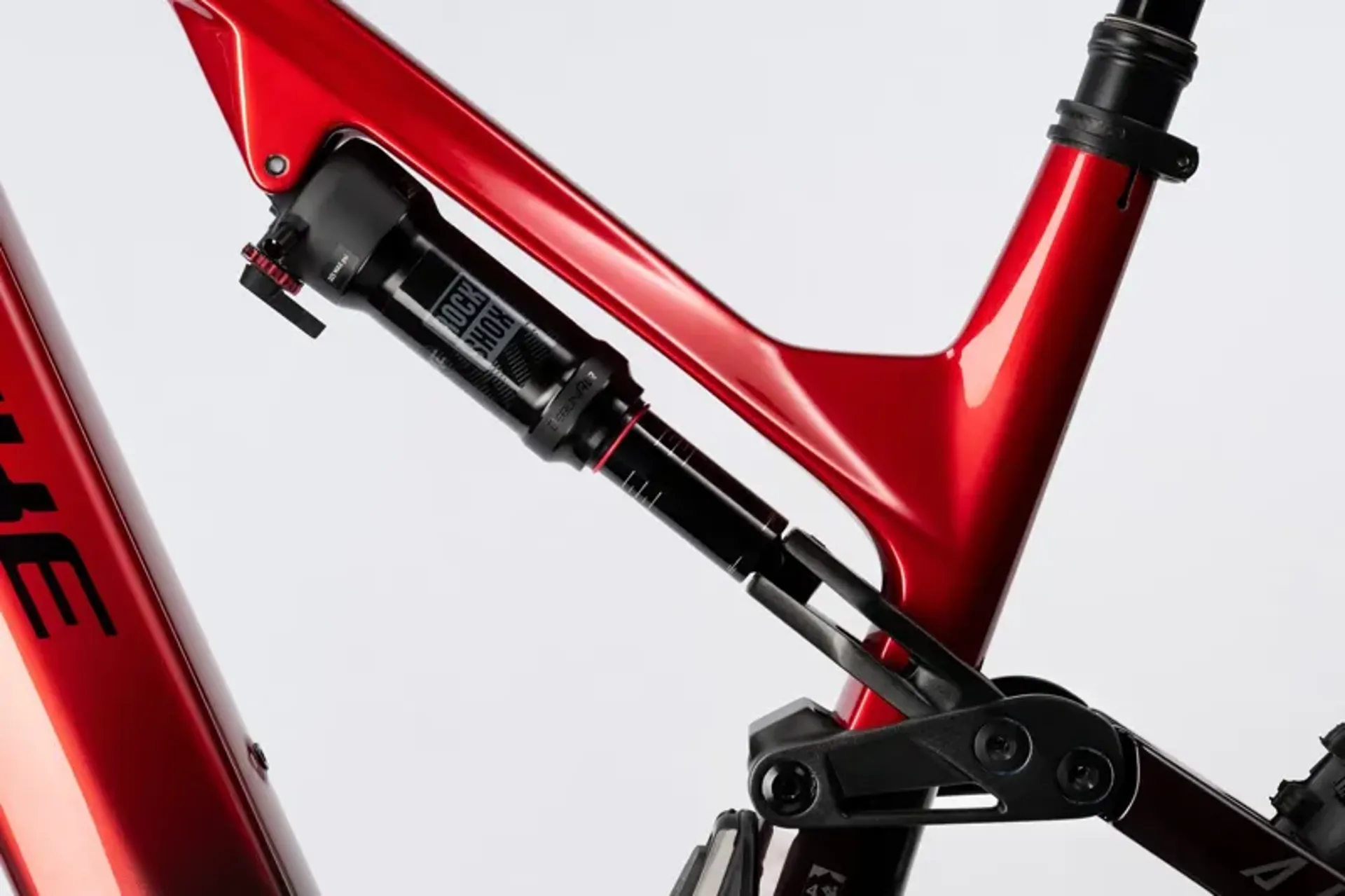

  • Shock Brand:Rockshox
  • Shock Kind:Deluxe Select+ RT 230x60mm, Standard, DebonAir+
  • Suspension Type:Fully
  • Travel Front:160 mm
  • Travel Rear:150 mm

Handlebar and Saddle

  • Handgrip Brand:XLC
  • Grip Kind:GR-S34 Gravity Grip
  • Handlebar Brand:XLC
  • Handlebar Diameter:35 mm
  • Handlebar Kind:HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
  • Handlebar Material:Aluminium
  • Handlebar Rise:20
  • Handlebar Type:Riser Bar
  • Handlebar Width:800 mm
  • Headset Brand:Acros
  • Headset Kind:ICR Top cup / bottom BlockLock ZS56/ZS56
  • Headset Type:Semi-integrated
  • Saddle Brand:Prologo
  • Saddle Kind:Proxim W450 Performance 145 mm
  • Seatpost Brand:XLC
  • Seatpost Kind:
    • · Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm
    • · Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm
    • · Dropper SP-T21, Dia. 34.9 mm, Travel: 200 mm
  • Seatpost Length:
    • · 399 mm
    • · 495 mm
    • · 556 mm
  • Seatpost Material:Aluminium
  • Seatpost Travel (mm):
    • · 125 mm
    • · 170 mm
    • · 200 mm
  • Seatpost Type:Dropperpost
  • Stem Brand:XLC
  • Stem Kind:ST-M50, Dia. 35 mm, L: 40 mm, A-Head
  • Stem Length:40 mm

Lighting

  • Brake Light:No

Wheels and wheel components

  • Hub Front Brand:XLC
  • Hub Front Kind:HF-M55 Boost 15x110 mm, 32H, 6 bolt Disc
  • Hub Rear Brand:XLC
  • Hub Rear Kind:HR-M55 Boost 12x148 mm, 32H, 6 bolt Disc, XD
  • Rim Brand:XLC
  • Rim Kind:WR-M49 SL Disc 30/622 32H 6,5 mm Valve
  • Rim Rear Brand:XLC
  • Rim Rear Kind:WR-M47 SL Disc 30/584 32H 6,5 mm Valve
  • Spoke Brand:Sapim
  • Spoke Kind:Race Dia. 2.0, J-Bend
  • Tyre Brand:Continental
  • Tyre Kind:Kryptotal-Fr, Enduro Soft, foldable skin SL
  • Tyre Rear Brand:Continental
  • Tyre Rear Kind:Xynotal, Enduro Soft, foldable skin SL
  • Tyre Size Etrto:60-622
  • Wheel Size Front:29
  • Wheel Size Rear:27.5
Sizing Information

Bike Geometry

  • Bottom bracket drop [mm]:13.5 mm
  • Chain stay length [mm]:450 mm
  • Fork total length [mm]:44 mm
  • Head tube angle:65 degrees
  • Head tube length [mm]:
    • · 110 mm
    • · 120 mm
    • · 130 mm
    • · 140 mm
  • Reach [mm]:
    • · 427 mm
    • · 456 mm
    • · 487 mm
    • · 516 mm
  • Stack [mm]:
    • · 631 mm
    • · 640 mm
    • · 649 mm
    • · 658 mm
  • Stand over height [mm]:770 mm
  • Seat tube angle:74.2 degrees
  • Seat tube length [mm]:
    • · 400 mm
    • · 430 mm
    • · 460 mm
    • · 490 mm
  • Top tube length [mm]:
    • · 560 mm
    • · 592 mm
    • · 625 mm
    • · 657 mm
  • Wheelbase [mm]:
    • · 1207 mm
    • · 1240 mm
    • · 1275 mm
    • · 1309 mm
