20"Mondraker PLAY 20 2024 premiumkids' ebike MAHLE X35 250Wh Alloy 12,9kgperformance and stability on trails. A fantastic choice to introduce children to the exciting world of electric mountain biking with exceptional comfort and grip.

Mondraker

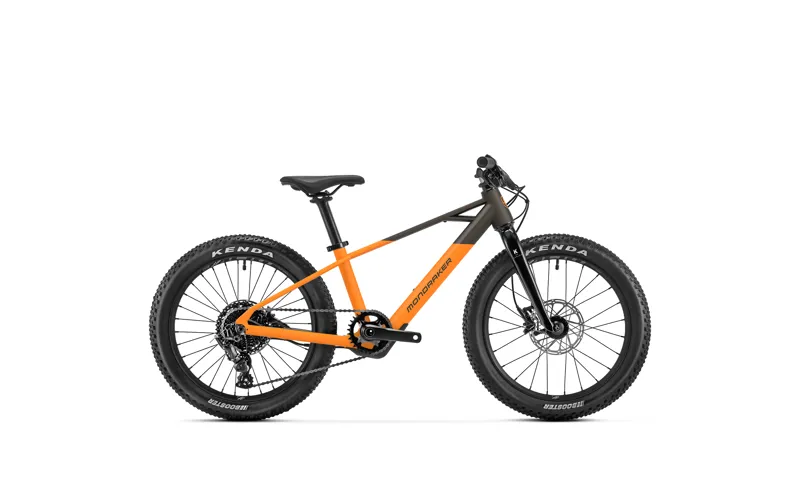

Mondraker Play 20 inch e-bike Atomic Orange 2026

£1,999.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Our customers love us

Don't take our word for it, check out some of the great reviews our customers have left us & if you've had a great experience with us, why not let us — and our customers — know about it.

Mondraker Play 20 inch e-bike Atomic Orange 2026

Season:2026

Brand:Mondraker

Code:010.26391

20" MAHLE X35 250Wh Alloy 12,9kg

Frame

Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

Fork

MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Grips

Onoff Twin, 1lock-on

Saddle

SDG Fly Jr

Sizes

One size: 260mm

Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Seatpost

MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm

Front brake

Clarks M2 Junior 160mm IS 6 bolts, one piece rotor

Rear brake

Clarks M2 Junior 160mm IS 6 bolts, one piece rotor

Technical Information

Components

Technical specs

Frame
Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes
One size: 260mm
Fork
MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount
Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm
Saddle
SDG Fly Jr
Front brake
Clarks M2 Junior 160mm IS 6 bolts, one piece rotor
Rear brake
Clarks M2 Junior 160mm IS 6 bolts, one piece rotor
Brake lever
Clarks M2 Junior
Rims
MDK-HP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Front hub
K8QF, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub
Mahle-Ebikemotion X-35, HG freehub
Front tire
Kenda Booster 20x2.4 single compound 30TPI, wire bead
Rear tire
Kenda Booster 20x2.4 single compound 30TPI, wire bead
Crankset
Samox DM 28T steel, 114mm
Rings
28T, steel
Bottom bracket
BSA, 73mm
Chain
Sram PC951 9s, Powerlock
Rear derrailleur
Microshift Advent, M6195S super short cage
Shift levers
Microshift Advent SL M6195R, 9s
Casette
Microshift Advent 11-38T, 9s
Derailleur hanger
Mondraker M077
Weight
12,9 kg
Display
Mahle-Ebikemotion
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh

Sizing Information

Frame size	Play 20
A	Seattube length	260 mm
B	Toptube length	475 mm
C	Bottom bracket drop	-15 mm
D	Bottom bracket height	240 mm
E	Chainstay length	355 mm
F	Seat tube angle	72º
G	Effective seattube angle	72º
H	Headtube angle	68º
I	Fork Offset	45 mm
J	Wheelbase	903 mm
K	Headtube length	100 mm
L	Reach	340 mm
M	Stack	387 mm
