The PRIME R is the sporty eMTB for people who want to get into mountain biking and want an ebike with a suspension fork and all the guarantees of a Mondraker. What’s more its Bosch Performance Line CX Smart System motor paired with a 750Wh battery let you enjoy near endless rides. For 2023 it comes fitted with the all new integrated System Controller and Bosch’s wireless Mini Remote control plus the Intuvia 100 display. Its RockShox fork with 120mm travel and 29" wheels let you enjoy either quiet rides, if that’s what you’re after, or the most challenging day outs you could possibly dream of.
The PRIME R is the sporty eMTB for people who want to get into mountain biking and want an ebike with a suspension fork and all the guarantees of a Mondraker. What’s more its Bosch Performance Line CX Smart System motor paired with a 750Wh battery let you enjoy near endless rides. For 2023 it comes fitted with the all new integrated System Controller and Bosch’s wireless Mini Remote control plus the Intuvia 100 display. Its RockShox fork with 120mm travel and 29" wheels let you enjoy either quiet rides, if that’s what you’re after, or the most challenging day outs you could possibly dream of.
Mondraker

Mondraker PRIME R ED1 Orange White

£2,699.00 £3,899.00 31% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

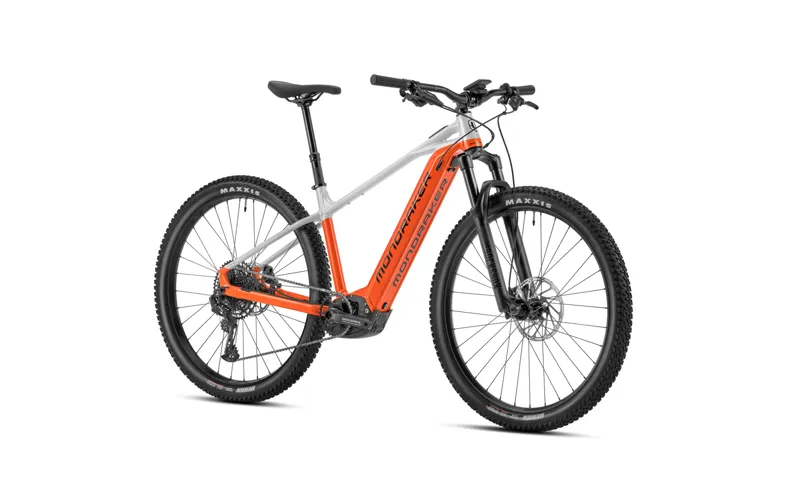

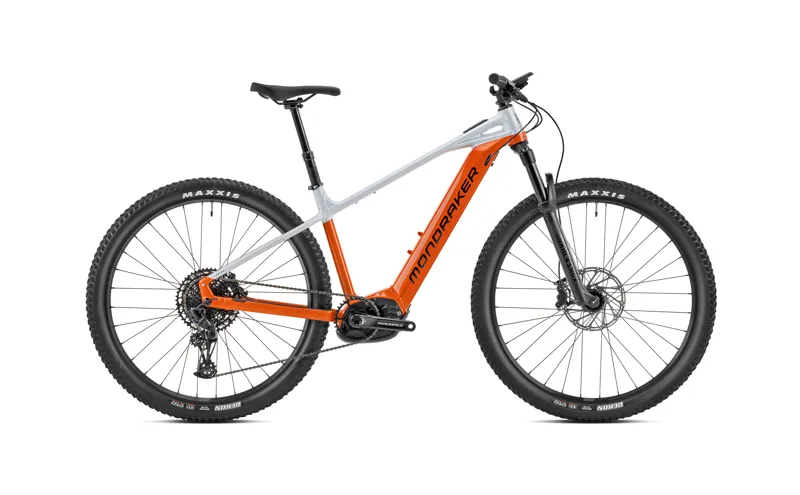

Mondraker PRIME R ED1 Orange White

Season:2023

Brand:Mondraker

Code:010.2325OWH

Mondraker Prime R, is a super electric hardtail MTB, with the Bosch Smart system giving 85Nm of power with a 750 wh battery, making this a great electric trail bike that will be sure to get you out for miles of smiles.

Frame

Prime Xtralite 6061 Fully Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

Sizes

XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm


Fork

RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º


Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore


Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm


Saddle

MDK ebike black

Front brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


Rear brake

Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust


Rims

MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel


Front hub

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Rear hub

Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts


Front tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead


Crankset

Race Face Aeffect ebike, 165mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD


Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1


Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Cassette

Sram PG-1210, 11-50T, 12s


Derailleur hanger

Mondraker M068

Weight

23,3 kg


Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX (25km/h) Smart System


Battery

Bosch Powertube 750Wh
