The 2026 Crafty Carbon RR S in Dense Yellow an awsome eye catching bike with amazing spec and with the new Bosch 400C controller display mounted flush in the top tube, now with an 800Wh battery and Fox Podium Factory Forks.
The 2026 Crafty Carbon RR S in Dense Yellow an awsome eye catching bike with amazing spec and with the new Bosch 400C controller display mounted flush in the top tube, now with an 800Wh battery and Fox Podium Factory Forks.
Mondraker

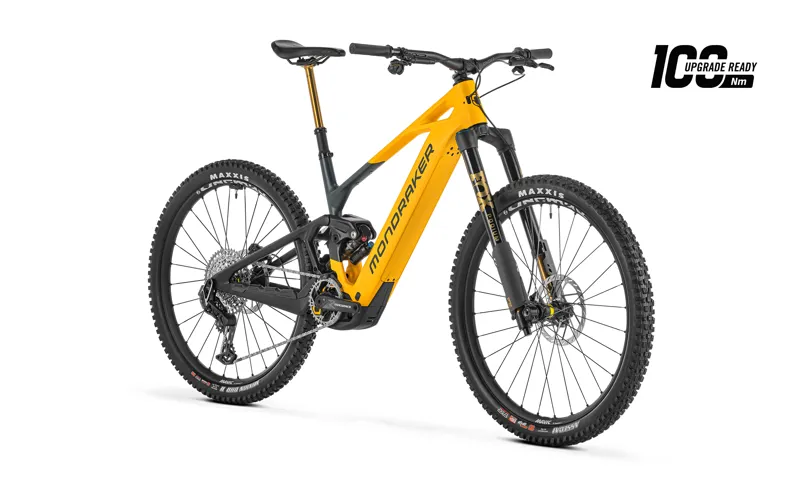

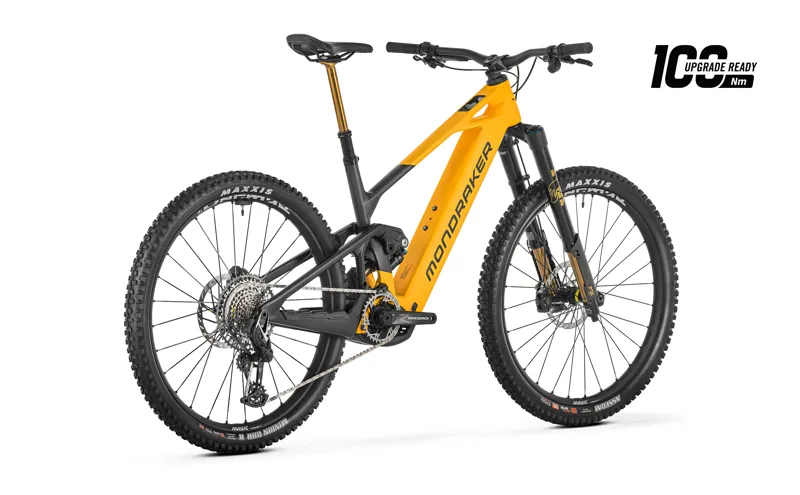

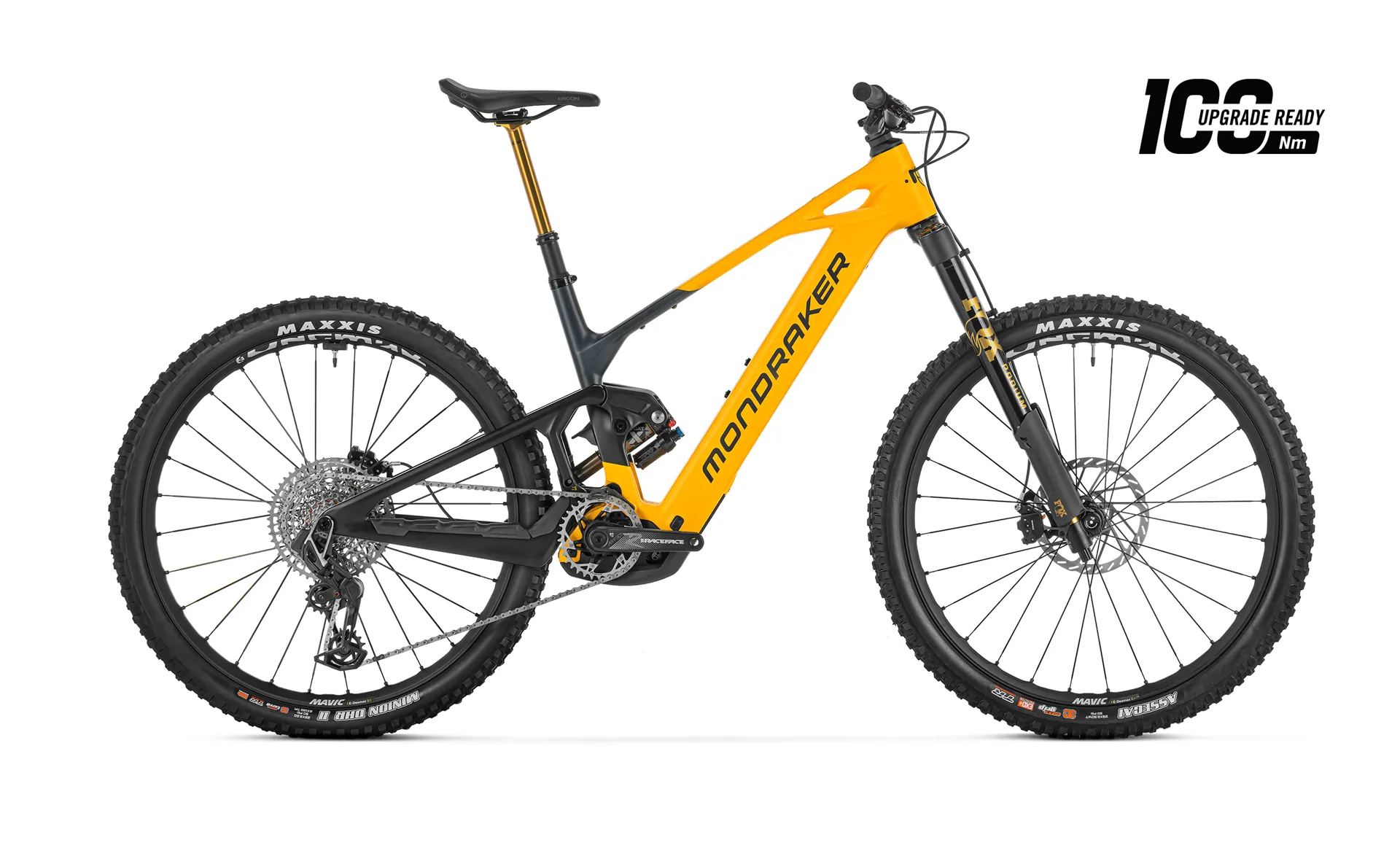

Mondraker Crafty Carbon RR S Dense Yellow 2026

£9,399.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Mondraker Crafty Carbon RR S Dense Yellow 2026

Season:2026

Brand:Mondraker

Code:010.26314

The Mondraker Crafty Carbon RR S 2026 just got better.

Now with the new Bosch 400C controller top tube display, also new is the Bosch 800Wh battery to give better riding range, this along with the new Fox Podium Factory forks ensures this bike is built for serious riders who demand a high-performance e-mountain bike that can tackle everything from technical climbs to steep, fast descents.
With a full carbon frame, Zero Suspension system, forward geometry this is a very capible electric enduro bike.
Technical Information

Technical specs

Frame

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushing

Shock settings

CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock

Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm

Saddle

Ergon SM-10

Front brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Rims

Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

Mavic, Boost 20x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

Front tyre

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear tyre

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Sram XX Eagle 34T T-Type, direct mount, steel, CL55

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Cassette

Sram XS-1275, 10-52T, T-Type, 12s

Weight

23,9 kg

Display

Kiox 400C / Bosch Mini Remote

Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh


Sizing Information


Geometry



Frame size
S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
ASeattube length380 mm410 mm435 mm460 mm490 mm
BToptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
CBottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
DBottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
EChainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
FSeat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
GEffective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
HHeadtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
IFork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
JWheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
KHeadtube length120 mm120 mm130 mm140 mm150 mm
LReach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
MStack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm

Size Guide

Small<165cm -165cm / <65-65in
Medium165cm-175cm / <65 - 69in
Medium Large170cm -185cm / 67 -73in
Large180cm - 190cm / 71-75in
X large190cm - 195cm / 75 -77in
